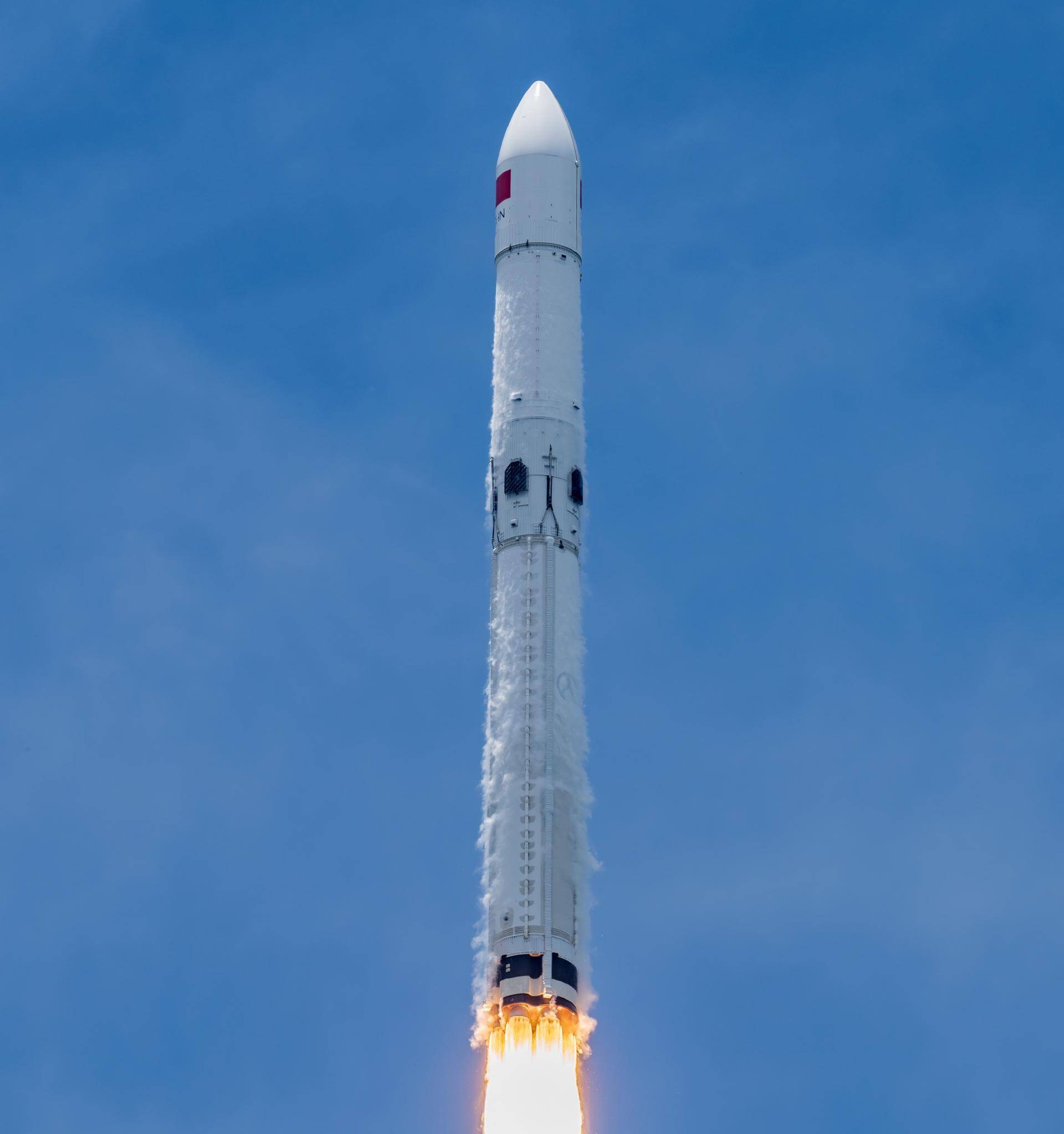

Long March 10B
Long March family · China Aerospace Science and Technology Corporation · Reusable · Active
The Long March 10B is a reusable launch vehicle based on the 1st stage of the Long March 10A, in turn derived from a single 1st stage core of the Long March 10, with 7 YF-100 series kerosene/liquid oxygen staged-combustion cycle engines on the 1st stage. Like the Long March 10A, the 10B’s 1st stage is designed to be recovered downrange by a recovery barge equipped with an arrestor net and support frame, with the 1st stage landing on the net’s cables using its grid fins. The 2nd stage, however, uses a single YF-219 gas generator cycle methane/liquid oxygen engine with 140 tonnes of thrust. The Long March 10B became China's first orbital launch vehicle with its first stage booster being recovered, during its first launch on 10 July 2026.
Specifications
- Thrust
- 8,728 kN
- Height
- 63 m
- Diameter
- 5 m
- Launch mass
- 760 t
- Stages
- 2
- Launch cost
- —
- LEO capacity
- 16,000 kg
- GTO capacity
- —
- GEO capacity
- —
- SSO capacity
- —
Vehicle specifications from Launch Library; blanks are unpublished figures.
Flight record
Counted from padside's own launch record — the same basis as the Stats page.
Boosters that flew this rocket
Boosters by flights
- LM-10B F11 flights1/1 landings
Serial-tracked stages only — predominantly SpaceX.
Launches
- Long March 10B | Demo Flight — Success
